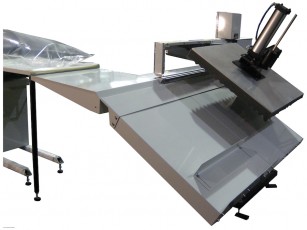

Vertrod PCAN Pneumatic Cantilever Sealer

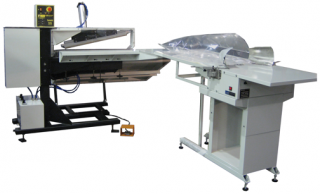

The Vertrod PCAN pneumatic cantilever sealer is an industrial grade thermal impulse heat sealer for applications that require unobstructed access to the sealing jaws. With the optional air expeller product volume can be reduced by means of compression. The air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle. This method is faster than vacuum packaging to reduce product volume while also maintaining a consistent, uniform package shape.
A Bagmaster bag opener used in conjunction with the optional extended product support table will allow a single operator to load product and run the compression / sealing cycle in a single step.
Some typical applications include packaging foam products, textiles, and other bulky flexible products. The Vertrod PCAN is built in three frame sizes with seal lengths ranging from 14”-36” and a variety of sealing jaw configurations.
The Vertrod PCAN pneumatic cantilever sealer is made in the USA and includes a 3 year limited warranty.
- Seal Length: 14”, 20”, 24”, 30”, 36”
- Seal width: 1/4″
- Single side heater bar with opposing pressure bar (bottom jaw heated)
- Time-based thermal impulse sealing system
- Independent Seal and Cool timers from 0 to 3.75 seconds (.25 second increments)
- Welded steel frame construction with powder coat finish
- Adjustable height sealing head
- Pneumatic low-pressure jaw close safety system with release if obstruction is detected.
- Foot pedal activation
- Air requirement (min): 100 psi
- Electrical requirement: 115V
Options:
- Air Expeller assembly for compression of product and evacuation of air
- Large product clearance for air expeller
- Extended product support table
- Wider seal widths: 3/8”, 1/2”
- Bi-active jaws (top and bottom heated bars)
- Hot Wire Trim (beaded trim seal)
- Cold Cut Wire Trim
- Water Cool ready heater bar
- Suretemp™ temperature controller with digital readout (up to 350°F)
- High Temperature Package (350°- 650°F)
- Scrap blow-off (with cold wire trim seal only)
- Water re-circulating package
- Water Chiller
- Heavy-duty locking swivel casters
- 230V, single phase operation
