Southworth PalletPal 360 Spring Pallet Positioner

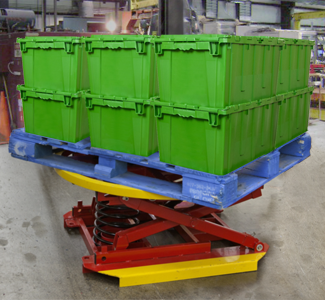

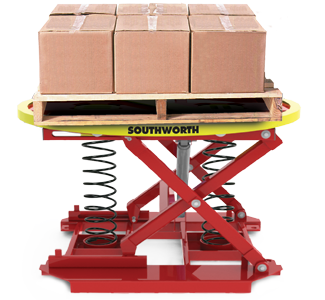

The PalletPal 360™ Spring Pallet Positioner / Level Loader is the original, automatic, self-leveling, spring pallet leveler that makes loading and unloading pallets faster, safer and easier. This simple, automatic load leveler uses a system of springs and shock absorbers to lower and raise loads as boxes are added or removed from pallets. A turntable top allows nearside loading and unloading. No power or air supply is required. Pallet loads up to 4,500 lbs can be easily handled by this spring leveler.
Unlike competitive pallet levelers / pallet lifters, the PalletPal 360 spring level loader offers workers complete 360° access to loads. All of its components are contained within the diameter of the turntable ring. There are no protrusions, projections or obstructions, so reach-over zones are eliminated.
- Self-Leveling action no operator adjustments required
- Rugged tubular steel frame for loads up to 4,500 lbs.

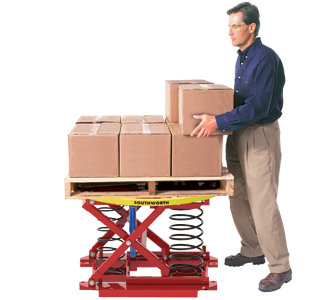

- Heavy-duty springs calibrated to bring pallet to most convenient height.
- Proven linkage design maintains level under uneven loading.
- Dampener provides smooth, gradual raising and lowering, without overshoot or bounce.
- Low-friction bearing supported turntable for near-side loading and unloading.

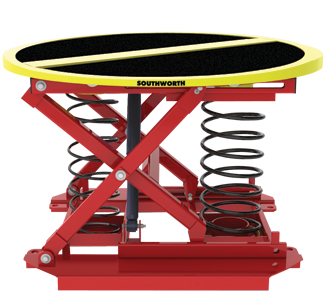

- Phenolic frame cover (optional).
- Fork pockets for relocation by fork truck also extend base for free standing stability.
- Leveling feet (optional) allow use on sloping or uneven floors.
- Free standing, can be easily relocated by fork truck.
| Capactiy | Raised Height | Lowered Height | Overall Base | Turntable Diameter |
|---|---|---|---|---|
| 400-4500lbs | 28" | 9-1/2" | 36" x 36" | 43-5/8" |
