Southworth PalletPal Roll-On Level Loader

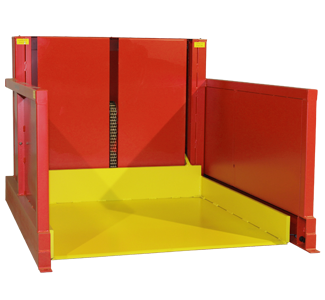

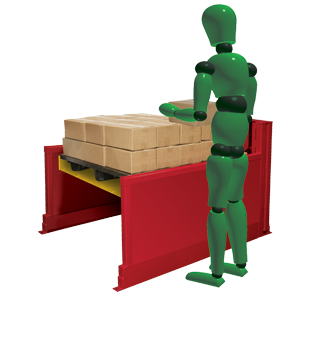

With internal hydraulic power, PalletPal Roll-On Level Loaders lower to floor height so pallets can be rolled on and off with a hand pallet truck. The lift is then easily adjusted by push button or foot switch control to maintain an ideal height for manual loading and unloading. The narrow side and back panels allow for easy reach over for 4 side access.
- Photo-eye provides toe protection

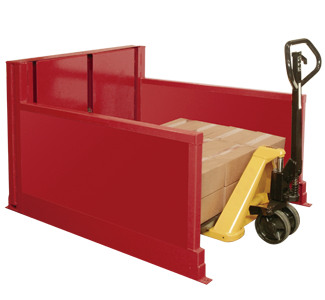

- Platform locks in partially up position to allow relocation by means of a hand pallet truck
- Available One-Touch Auto Leveling provides up or down adjustment by a preset increment at the touch of a button
| Model | Load Capacity | Raised Height | Lowered Height | Platform Size | Rise Time |
|---|---|---|---|---|---|
| ROLLC2.5-28 | 2500lbs | 28" | 3/8" | 44" x 48" | 22 sec |
| Non-standard platform sizes available: 38", 40", 42", 48", 52" - consult us for details | |||||
| ROLLC4-28 | 4000lbs | 28" | 3/8" | 44" x 48" | 30 sec |
| Non-standard platform sizes available: 40", 42", 48", 52" - consult us for details | |||||
